ZY800Hot stamping edge bonding machine(one milling cutter, one sanding, two transfer)
Function:
This machine including four steps, finished shape by milling cutter, sanding by grinding wheel,
one time pressed film by transfer, second time pressed film and shape. using the imported high-speed motor, after two times deal with shape and easy to control and adjust the angel.
Applicable to MDF, HDF board, are widely used in furniture, cupboard, dining-table, variety door board and other materials.
specifications:
panel thickness 3-50mm
working pressure 3kg/cm2
feed speed 5-8m/min
motor power 10kw
overall size 3400*1000*1600mm
working temperature Spring and Autumn（160-170℃）
Summer（150-160℃）
Winter（170-210℃）
working procedure:
1.milling by cutter
2.sanding by sand belt
3 .heat transfer the basement membrane
4.heat transfer face film
5.finished shape

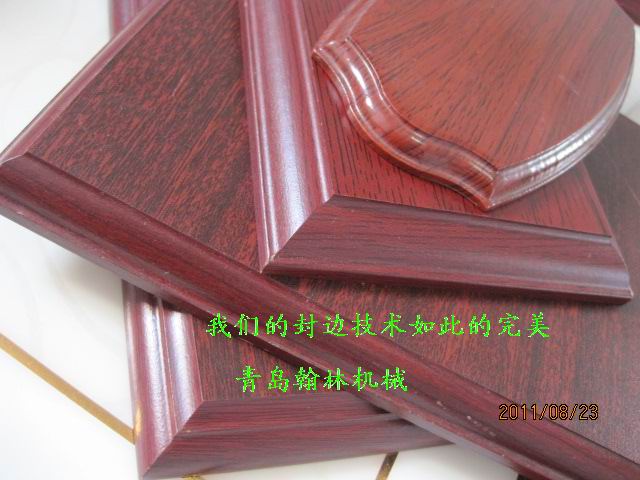

样品
 |
