ZY2600 Hot stamping edge sealing machine(arts and crafts type)
Can used in medals, pallets, frames, arts and crafts
The machine is one kind of high efficiency different type sealing machine by collected machine, electric and air.
Configuration: This machine can finished the shape one time through equipped Germany Leitz, milling by imported mill cutter, polishing by sanding wheel, dust removal, one transfer, two press film shape and cooling.
Can customized products according to customer’s request.
Good slippery handle after sealing, especially used UV bottom die and face film.
specifications:
1. max sealing thickness 3~55mm
2. max sealing width not limit
3.working feed speed 0—8mpm
4. diameter of thermo print wheel 200mm
5. angle justification range 0~45°
6. milling motor power 2.5kw
7. max speed of revolution 12000rpm
8. sanding power 0.75kw
9. feed motor slowdown 1.5kw
10. heating wheel+winding power 0.025kw×3
11. heating pipe power 3kw×2
12. power supply 380V
13. dimensions(length*width*height) 3600mm×1000mm×1500mm

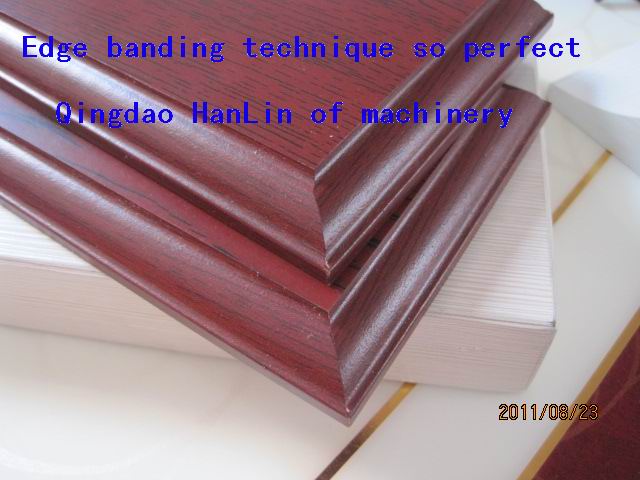

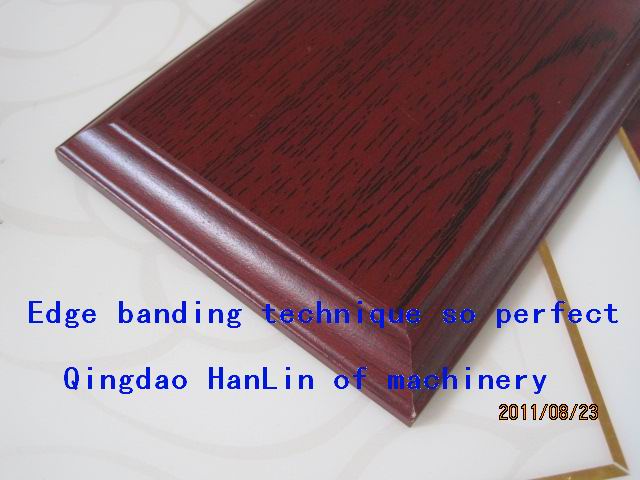

Sample

 |
